As part of our Synergised decking systems we offer two high quality, cost-effective and non-combustible decking solutions that will help transform any decking or patio area. Both systems are easy to install and are suitable for domestic and commercial environments.

Why Choose Synergised?

As part of our Synergised decking systems we offer two high quality, cost-effective and non-combustible decking solutions that will help transform any decking or patio area. Both systems are easy to install and are suitable for domestic and commercial environments.  And, whichever decking solution you choose, our unique innovative Perimeter Base System will allow for a wide range of our base fix handrailing solutions to be bolted down to the perimeter, providing a safe edge protection where there is a fall of more than 600mm.

Deck Boards

Fully non-combustible fire rated A1 and A2fl-s1 aluminium decking system designed for both residential and commercial environments such as high-rise balconies, walkways, roof terraces, pubs, gardens and all other high-rise applications and public areas.

Available in 3 contemporary colours, our deck boards are manufactured from structural grade 6063 T6 aluminium with 100 micron Qualicoat™ premium powder coating, making it the ideal decking solution for high footfall areas. The premium coating is low slip and provides low surface temperatures underfoot.

Installation couldn’t be easier without innovative adjustable cradle base and joist support system that offers up to 50% cost saving compared to other solutions. Once installed the system is long lasting and low maintenance with a manufacturer’ s limited warranty of 10 yeas on the coating with an expected product life expectancy +25 years.

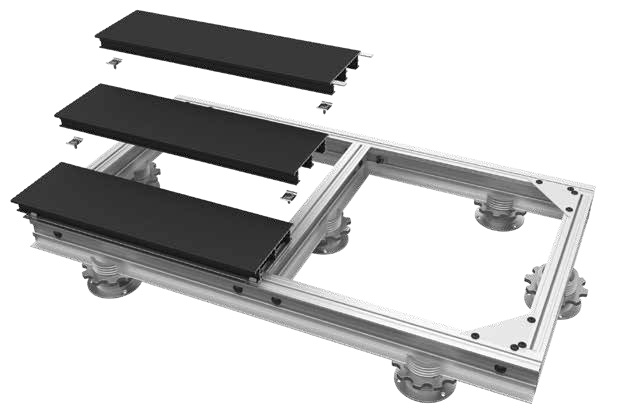

Subframe image

Features & Benefits

  • Euroclass Classifications of A1 & A2fl-s1 fire rated

  • Made from structural grade 6063 T6 aluminium

  • Ideal for high rise concrete balconies & terraces

  • Adjustable cradle and deck support system

  • Long lasting & low maintenance

  • Up to 50% cost saving compared to other systems

  • Cradle spacing up to 1800mm with 120mm joist

  • Low surface temperatures

  • Lightweight and easy to install

  • 10 year warranty on powder coating

  • Mill finish subframes and cradles

  • 100 micron Qualicoat™ premium powder coating

Fitting Scenarios

Timber Replacement

Timber replacement

System flexibility ensures that whatever timber decking is being replaced, our adjustable cradles and subframe are simple to work with and achieve that perfect solution with steelwork.

Concrete Replacement

Concrete balcony & terrace

By providing substantial height adjustment with 2 joist cradles and 3 joist heights, the support system was designed to make installation easier where there are height build ups on balconies and terraces.

Products

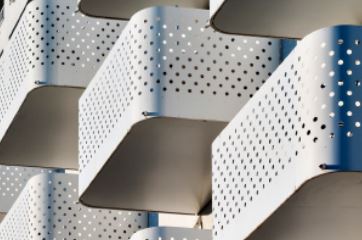

Balcony Boards

Our aluminium Balcony Decking System is fire rated to the latest A2-fl-s1 & A2-s1,d0 fire safety standards. A highly competitive system with several unique features.

Features & Benefits

  • Best non-slip surface on the market

  • Designed with ease of installation in mind

  • Complete range of draining options available

  • Fully fire rated and compliant with BS 8579

  • Option of continuous or self draining deck

  • Design life of over 60 years

Subframe

A high performing subframe which is a long-lasting and durable alternative to timber. The 20mm joist height allows for the ultra-low profile applications. The aluminium joists are easy to cut, lightweight to handle and allow for quick and easy deck building.

  • Available in 3 heights

  • 3600mm lengths

  • Lightweight

  • Quick to assemble

  • 1000mm joist spacing

  • Cradle spacing up to 1800mm with 120mm joist

  • Mill finish

  • Can be used with other deck materials

  • Aluminium Decking Subframe
  • Aluminium Joist
  • Aluminium Joist

Fixings Scenarios

Adjustable Cradles

These non-combustible cradles are simple to install with height adjustments ranging from 45 to 180mm, when combined with our joist profiles will ensure your deck is at the correct angle. Our innovative cradle base and joist support system offers up to 50% cost saving compared to other solutions.

The cradle has been designed by industry professionals to comply with Eurocode 1: Actions on Structures (BS EN 1991-1-1). The system has been assessed for point loading in relations to both domestic and commercial use, making it suitable for a range of applications.

Features
  • Easy to install

  • Fully adjustable from 45 to 180mm

  • Lightweight and easy to handle

  • Mill finish

  • Fixing hole size: 5mm

  • Synergised cradles can be used with other subframes

Adjustable cradle
download brochure

Fitting Scenarios

Products

FREE SAMPLES

If you would like to order samples please enter your details below and tick the samples required:

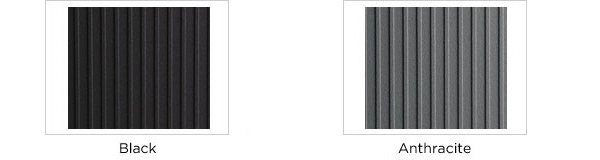

    Aluminium Deck Boards

    BlackAnthracite

    Joists

    20mm70mm120mm

    Aluminium Decking

    Synergised aluminium decking systems have been independently tested at the UK’s Premier fire testing centre and comply with EN13823, EN13501 and EN ISO 1716 and achieves a minimum of A2fl-s1 which satisfies all current and proposed legal requirements (Click here to view fire test certificate)

    Our aluminium decking systems have been designed for ease of use and speed of installation.

    Using our unique stainless-steel hidden clip fixing system Synergised deck boards can be quickly and easily affixed to aluminium, polymer, or timber subframes.

    Synergised aluminium deck boards can be cut using a standard chop saw with an appropriate blade fitted. Smaller cuts can be achieved using a hacksaw or jig saw. Spray touch up paints are available to finish cut edges in all our colours.

    Synergised aluminium decking is a great conductor of heat and will remain significantly cooler than similar colours in other decking materials such as composites and timber. (Click here to view comparison chart).

    Synergised aluminium deck boards are powder coated using a Qualicoat approved system and will fade at a rate less than 3 Delta E. A figure between 0-4 Delta E fade resistance is classed as excellent.

    No, Synergised aluminium decking has undergone the following stringent tests and results show its one of the best anti-slip finishes on the market today.

    Shod Ramp test to CEN/TS 16165, annex B and DIN 51130 Rated R12

    Sliding Friction Co-efficient: Tribometer test CEN16165, annex D and DIN51131

    Anti-slip Pendulum test to BS7976-2 Dry and Wet (Click here to view charts)

    Synergised aluminium decking is made from recycled aluminium and is fully recyclable at end of life.

    Without a doubt our Synergised aluminium subframe is the preferred option when fire certification is required. Aluminium is roughly 3 times stronger than wood. Timber or polymer subframes can be used for low level (Below 18 metres in height) or domestic applications if a lower cost option is required. For commercial applications we would always recommend the aluminium system.

    Warm soapy water and a stiff broom will normally suffice.
